Is this power adapter compatible with my Acer PA-1650-86AW?

This adapter is designed for use with the Acer PA-1650-86AW. To ensure proper compatibility, please verify that the output voltage (19V) matches exactly and that the connector type is the same as your original charger.

What is the output voltage of this charger?

The adapter delivers an output of 19V. The voltage must match your original charger precisely to ensure safe and reliable charging.

Does this adapter provide enough power for my laptop?

With a rating of 3.42A and 65W, this adapter meets or exceeds the power requirements of most compatible laptops. Using equal or higher amperage and wattage is acceptable as long as voltage and connector are correct.

What are the barrel connector dimensions?

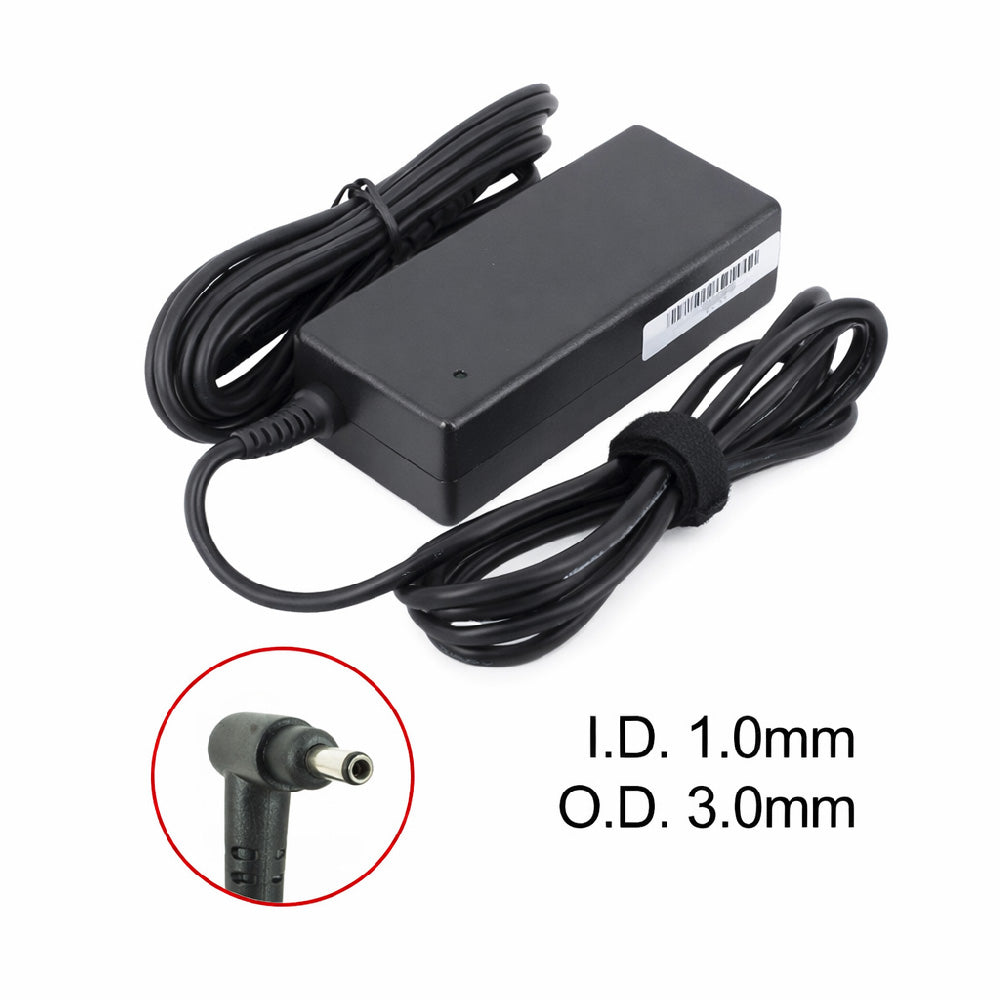

The barrel connector measures 3.0mm outer diameter (OD) and 1.0mm inner diameter (ID). Both dimensions must match your original adapter to ensure a secure connection.

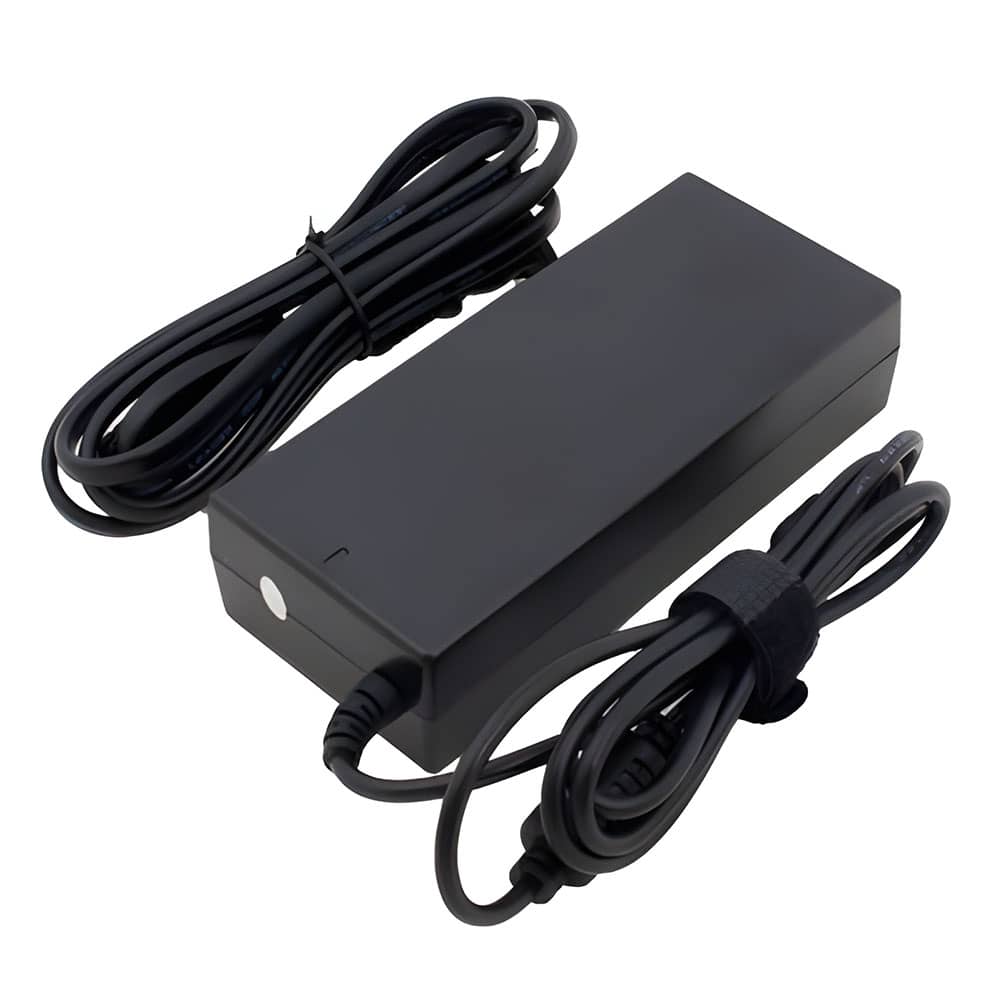

Acer PA-1650-86AW Compatible Laptop Adapter 19V 3.42A 65W (Fixed 02-Tip)

Q: Can this adapter be used internationally?

This adapter supports an input range of AC100~240V / 50~60Hz. It can be used in other countries as long as the local voltage falls within this range and the correct plug adapter is used.

SKU: AC19V65+-+02+TIP-BP-K272

C$23.00

In stock

Orders placed after 3:00 PM (PT) will be processed on the next business day.

More Compatible Options

→ Shop all Acer laptop adapters → Shop all Acer laptop batteries

Compatible Model

Acer TravelMate Series

TravelMate Spin B1 B118-G2-R, TravelMate Spin B1 B118-G2-RN, TravelMate Spin B1 B118-M-C7DR, TravelMate Spin B1 B118-RN, TravelMate Spin B1 B118-RN-C6WX, TravelMate Spin B1 TMB118-RN-C8JP, TravelMate X313, TravelMate X313-M

Acer Switch Series

Switch 3 SW312-31-P5VG, Switch 5 SW512-52-55YD

Acer Swift Series

Swift 3 SF313-51-51Z4, Swift 3 SF313-51-54AW, Swift 3 SF313-51-59SZ, Swift 3 SF314-51-5776, Swift 3 SF314-52G-52M7, Swift 3 SF314-52G-530Q, Swift 3 SF314-52G-5848, Swift 3 SF314-53G-87EQ, Swift 3 SF314-55-51ST, Swift 3 SF314-55G-7577, Swift 3 SF314-56-517W, Swift 3 SF314-56G-505L, Swift 3 SF314-56G-522J, Swift 3 SF314-56G-52MA, Swift 3 SF314-56G-59M7, Swift 3 SF314-56G-59S8, Swift 3 SF314-56G-75M9, Swift 3 SF314-56G-79DI, Swift SF113-31-P56D

Acer Spin Series

Spin 1 SP111-31N-C4UG, Spin 1 SP111-31N-P2GH, Spin 1 SP111-31-P5C9, Spin 1 SP111-32N-P5HH, Spin 1 SP111-32N-P605, Spin 3 SP315-51-79NT, Spin 5 SP515-51GN-54GU, Spin 5 SP515-51GN-57B1, Spin 5 SP515-51GN-80A3, Spin 5 SP515-51GN-80AS, Spin 5 SP515-51GN-82SS, Spin 5 SP515-51GN-83NU, Spin 5 SP515-51GN-88MA

Acer ICONIA Series

Iconia W700 Series, Iconia W700-6499, Iconia W700-6680, Iconia W700-6691, Iconia W700-6831, Iconia W700P-53334G06as

Acer Chromebook Series

Chromebook 11 C735-C7Y9, Chromebook 11 C771T-32GW, Chromebook 11 CB3-111, Chromebook 11 CB3-111-C4P2, Chromebook 11 CB3-111-C61U, Chromebook 11 CB3-111-C6SG, Chromebook 11 CB3-111-C9PJ, Chromebook 11 CB3-131-C3VC, Chromebook 11 CB3-131-C4RW, Chromebook 11 CB3-132-C4VV, Chromebook 11 N7 CB311-7HT-C7EK, Chromebook 13 C810-T7ZT, Chromebook 13 C810-T9CA, Chromebook 13 CB5-311P-T1BS, Chromebook 13 CB5-311P-T4S8, Chromebook 13 CB5-311-T0B2, Chromebook 13 CB5-311-T6HK, Chromebook 13 CB5-311-T6JJ, Chromebook 13 CB5-311-T7H5, Chromebook 13 CB5-311-T7NN, Chromebook 13 CB5-311-T9B0, Chromebook 13 CB5-311-T9Y2, Chromebook 14 CB3-431-C5FM, Chromebook 14 CB3-431-C6ZB, Chromebook 14 CB3-431-C7VZ, Chromebook 15 CB3-531, Chromebook 15 CB3-532, Chromebook 15 CB3-532-C42P, Chromebook 15 CB3-532-C6T1, Chromebook 15 CB5-571-C1DZ, Chromebook C720-2653, Chromebook C720-2800, Chromebook C720-2827, Chromebook C720-2843, Chromebook C720-2844, Chromebook C720-2848, Chromebook C720P-2457, Chromebook C720P-2600, Chromebook C720P-2625, Chromebook C720P-2657, Chromebook C720P-2661, Chromebook C720P-2834, Chromebook C720P-2848, Chromebook C910-354Y, Chromebook CB3-111-C4HT, Chromebook CB3-111-C670, Chromebook CB3-111-C8UB, Chromebook CB3-131-C3QF, Chromebook CB3-431-C5FM, Chromebook CB3-431-C7M1, Chromebook CB5-132T, Chromebook CB5-311P, Chromebook CB5-311-T7NN, Chromebook CB5-311-T9B0, Chromebook CB5-571-C4G4, Chromebook R 11 C738T-C44Z, Chromebook R 11 C738T-C60Q, Chromebook R11 CB5-132T, Chromebook R11 CB5-132T-C1KL, Chromebook R11 CB5-132T-C32M, Chromebook R11 CB5-132T-C732

Acer System.Collections.Generic.List`1[System.String]

Aspire P3,Aspire P3-131,Aspire P3-131-21292G12as,Aspire P3-171-3322Y4G12as,Aspire P3-171-5333Y2G12as,Aspire P3-171-5333Y4G12as,Aspire P3-171-5333Y4G12W8,Aspire P3-171-6408,Aspire R5-471T,Aspire R5-471T-52EE,Aspire R7,Aspire R7-371T-50ZE,Aspire R7-371T-59Q1,Aspire R7-371T-70NC,Aspire R7-371T-72CF,Aspire R7-371T-762R,Aspire R7-371T-78UV,Aspire R7-371T-78XG,Aspire R7-571G,Aspire S 13 S5-371,Aspire S 13 S5-371-563C,Aspire S 13 S5-371-76GS,Aspire S 13 S5-371-76WD,Aspire S13,Aspire S13 S5-371,Aspire S13 S5-371-5018,Aspire S13 S5-371T-76CY,Aspire S5-371,Aspire S5-371-597C,Aspire S5-371-70P9,Aspire S5-371-71QZ,Aspire S5-371-74YU,Aspire S5-371-757T,Aspire S5-371-767P,Aspire S5-371-76H0,Aspire S5-371T-537V,Aspire S5-371T-58CC,Aspire S5-391-53314G12akk,Aspire S5-391-6419,Aspire S5-391-6495,Aspire S5-394-9880,Aspire S5-6495,Aspire S7 Series,Aspire S7-191-53314G,Aspire S7-191-53314G12ass,Aspire S7-191-6413,Aspire S7-191-6423,Aspire S7-391-6413,Aspire S7-391-6468,Aspire S7-391-6677,Aspire S7-391-6812,Aspire S7-391-6818,Aspire S7-391-73514G25aws,Aspire S7-391-9604,Aspire S7-391-9886,Aspire S7-392-5410,Aspire S7-392-6484,Aspire S7-392-6807,Aspire S7-392-6832,Aspire S7-392-9404,Aspire S7-392-9439,Aspire S7-392-9466,Aspire S7-392-9890,Aspire S7-393-5853,Aspire S7-393-75508G25EWS,Aspire Switch Alpha 12,Aspire Switch Alpha 12 SA5-271-37QB,Aspire Switch Alpha 12 SA5-271-39N9,Aspire Switch Alpha 12 SA5-271-53QS,Aspire Switch Alpha 12 SA5-271-5623,Aspire Switch Alpha 12 SA5-271-57QF,Aspire Switch Alpha 12 SA5-271-70EQ,Aspire Switch Alpha 12 SA5-271P,Aspire Switch Alpha 12 SW5-171-325N,Aspire Switch Alpha 12 SW5-171-34ZR,Aspire Switch Alpha 12 SW5-171-39LB,Aspire Switch Alpha 12 SW5-171-80KM,Aspire Switch Alpha 12 SW5-171P-82B3,Aspire Switch Alpha 12 SW5-173,Aspire Switch Alpha 12 SW5-173-632W,Aspire Switch Alpha 12 SW5-173-63DW,Aspire Switch Alpha 12 SW5-173-65R3,Aspire Switch Alpha 12 SW5-173P,Aspire Switch Alpha 12 SW5-271-640N,Aspire Switch SW5-171-37VP,Aspire V3-372-587T,Aspire V3-372T,Aspire V3-372T-5051,S5-391-6419,S5-391-6836,S5-391-9880

Original Part Number

NP.ADT0A.010KP.06503.006PA-1450-26KP.04501.001NP.ADT11.00FKP.06503.012PA-1650-80KP.0650H.007TP.SW7AD.65W-AS-A050A001-00210000AK.065AP.034KP.06503.004A13-045N2AAK.045AP.060KP.06503.007PA-1650-86AWADP-45HE BKP.06503.005NSW25899KP.0450H.001A18-045N2AKP.06503.00290-OK02SP10000Q90-XB3J00PW0001090-XB350KPW0010Y04G26B000830-14G110004760ADP-65NH ABA44-00361ABA44-00214A

Adapter Q&A How to Choose the Right Adapter Protection Features

How can I confirm a replacement laptop adapter will work with my laptop?

Match the output voltage exactly, then confirm the connector type/size and polarity. Wattage can be the same or higher than your original adapter.

Where do I find the voltage and wattage information?

Check the label on your original charger (or the laptop’s bottom label). Look for Output (V) and Wattage (W). The voltage must match exactly.

Can I use an adapter with a different voltage?

In most cases, no. Using the wrong voltage can cause charging issues or damage your laptop.

Can I use a higher wattage adapter (for example 90W instead of 65W)?

Yes—higher wattage is usually OK as long as the voltage matches and the connector fits. Your laptop will only draw the power it needs.

How do I confirm the connector size is correct?

Compare the tip with your original charger and check the listed connector size (OD × ID). Even small differences (like 5.5×2.1mm vs 5.5×2.5mm) may not fit properly.

What does polarity mean, and why does it matter?

Polarity indicates which part of the plug is positive/negative. It must match your original adapter for safe and reliable charging.

My laptop uses USB-C charging. Can I use any USB-C charger?

Not always. Your laptop may require USB-C Power Delivery (PD) and a minimum wattage (such as 45W/65W/90W). Use a PD charger that meets or exceeds your laptop’s requirement.

Can this adapter be used internationally?

Many adapters support 100–240V input. Check your charger label. If it supports 100–240V, you can use it overseas with the correct plug adapter.

How can I find my laptop model on a Windows laptop?

If you are using a Windows laptop, you can find your laptop model using System Information:

• Step 1: Press Windows + R to open the Run window.
• Step 2: Type msinfo32 and click OK.
• Step 3: In the System Summary section, find System Model in the right pane.

Choosing the correct replacement adapter matters for safety and charging performance. Use this checklist before you place your order:

1. Match the Output Voltage

Check your original charger label for Output (for example, 19V).
The output voltage should match exactly.

2. Confirm Wattage / Amperage

Wattage can be the same or higher than your original adapter.
Using higher wattage is usually fine if voltage and connector match.

3. Check Connector Type & Size

For barrel tips, match the connector size (OD × ID).
For USB-C, ensure it supports USB-C PD and enough wattage for laptops.

4. Verify Polarity

Match the polarity symbol shown on your original adapter label.

💡 Battpit tip: Before using any laptop adapter, always check:
• Output voltage (must match exactly)
• Wattage (same or higher is OK)
• Connector size & polarity

All Battpit laptop adapters are designed with advanced built-in safety protection features to ensure reliable and stable charging performance. Our replacement AC adapters help protect your laptop, battery, and internal components during everyday use.

Over-voltage protection – Protects your laptop from sudden voltage spikes and unstable power supply.
Over-current protection – Prevents excessive current flow to maintain safe and consistent charging.
Short-circuit protection – Automatically shuts down the power adapter if a fault is detected.
Over-temperature protection – Helps reduce overheating risks for safer long-term use.

Each Battpit replacement laptop charger is engineered to meet high safety and quality standards, providing dependable performance for your notebook computer at home, office, or travel.

Safety & Compliance

Certified Quality You Can Trust

Battpit Canada replacement laptop batteries and AC adapters are selected with safety, compatibility, and compliance in mind. Products may meet common industry standards including RoHS, CE, UL, and ULC where applicable.

RoHS

RoHS Compliant Helps reduce restricted hazardous substances in electronic products.

CE

CE Marked Designed to meet applicable safety and quality requirements.

UL

UL Recognized Components Selected products may use UL recognized cells, components, or protection circuits.

ULC

ULC Safety Standard Supports safety confidence for products supplied to Canadian customers.

Why this matters: These compliance marks help customers choose a reliable replacement laptop battery, laptop charger, or AC adapter with built-in safety features such as over-charge, over-current, over-voltage, and short-circuit protection.
