Is this power adapter compatible with my Lenovo IdeaPad S530?

This adapter is designed for use with the Lenovo IdeaPad S530. To ensure proper compatibility, please verify that the output voltage (20V) matches exactly and that the connector type is the same as your original charger.

What is the output voltage of this charger?

The adapter delivers an output of 20V. The voltage must match your original charger precisely to ensure safe and reliable charging.

Does this adapter provide enough power for my laptop?

With a rating of 3.25A/4.5A and 90W, this adapter meets or exceeds the power requirements of most compatible laptops. Using equal or higher amperage and wattage is acceptable as long as voltage and connector are correct.

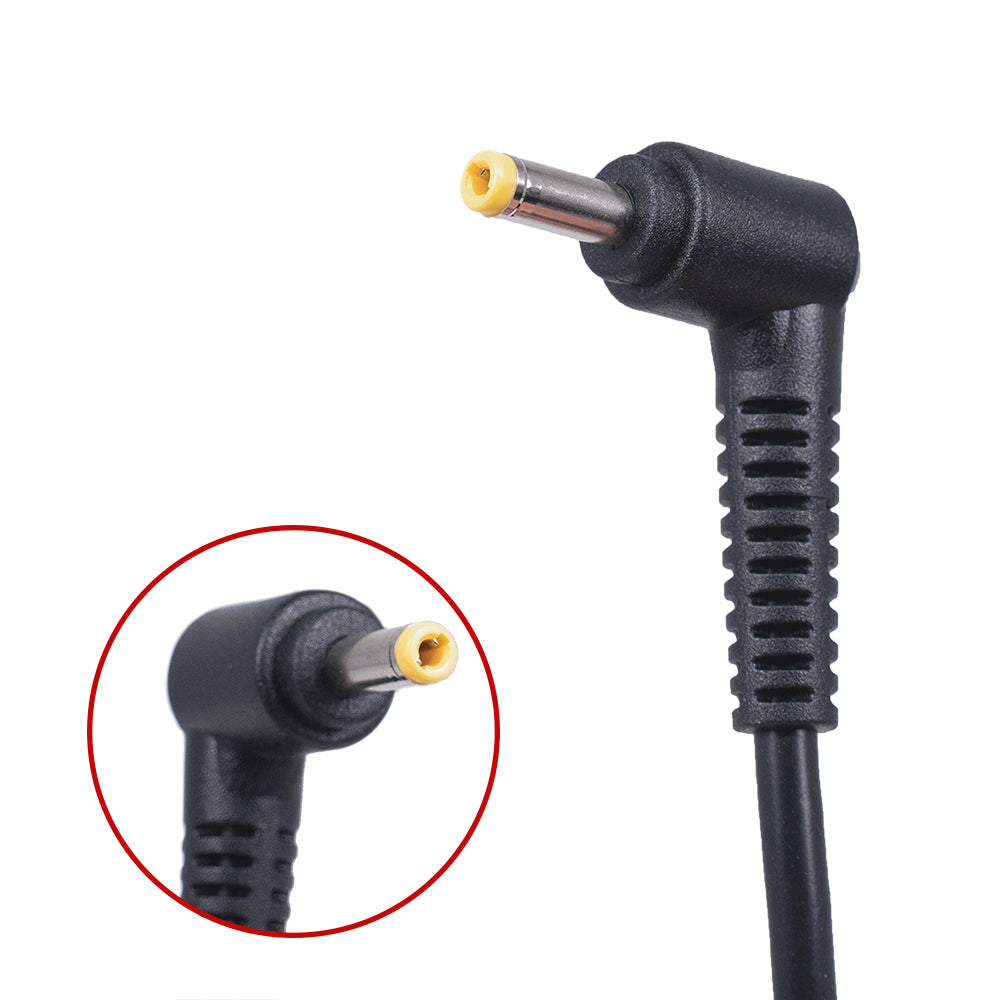

What are the barrel connector dimensions?

The barrel connector measures 4.0mm outer diameter (OD) and 1.7mm inner diameter (ID). Both dimensions must match your original adapter to ensure a secure connection.

IdeaPad S Series

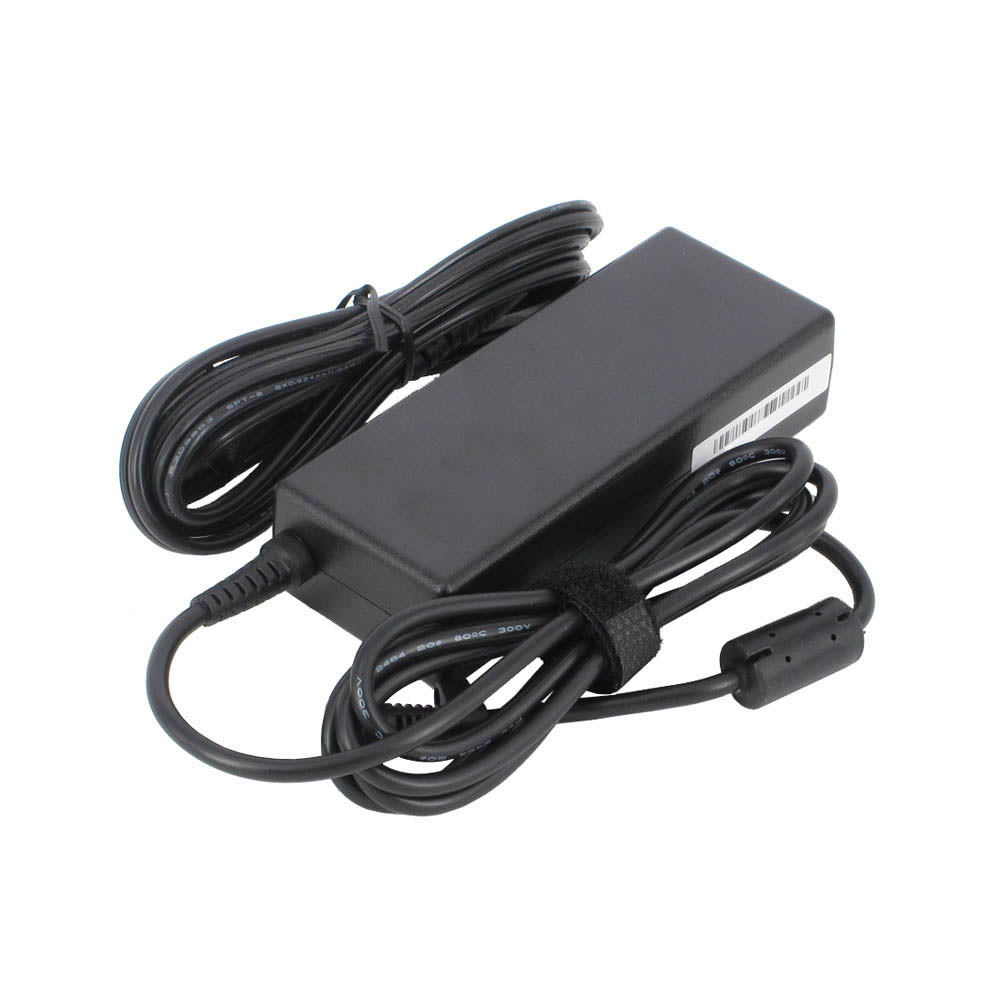

Lenovo IdeaPad S530 Compatible Laptop Adapter 20V 3.25A/4.5A 90W (Fixed V2-Tip)

Q: Can this adapter be used internationally?

This adapter supports an input range of AC100~240V / 50~60Hz. It can be used in other countries as long as the local voltage falls within this range and the correct plug adapter is used.

SKU: AC20V90V2-BP-K321

C$27.50

In stock

Orders placed after 3:00 PM (PT) will be processed on the next business day.

More Compatible Options

→ Shop IdeaPad S Series products

Adapter Q&A How to Choose the Right Adapter Protection Features

How can I confirm a replacement laptop adapter will work with my laptop?

Match the output voltage exactly, then confirm the connector type/size and polarity. Wattage can be the same or higher than your original adapter.

Where do I find the voltage and wattage information?

Check the label on your original charger (or the laptop’s bottom label). Look for Output (V) and Wattage (W). The voltage must match exactly.

Can I use an adapter with a different voltage?

In most cases, no. Using the wrong voltage can cause charging issues or damage your laptop.

Can I use a higher wattage adapter (for example 90W instead of 65W)?

Yes—higher wattage is usually OK as long as the voltage matches and the connector fits. Your laptop will only draw the power it needs.

How do I confirm the connector size is correct?

Compare the tip with your original charger and check the listed connector size (OD × ID). Even small differences (like 5.5×2.1mm vs 5.5×2.5mm) may not fit properly.

What does polarity mean, and why does it matter?

Polarity indicates which part of the plug is positive/negative. It must match your original adapter for safe and reliable charging.

My laptop uses USB-C charging. Can I use any USB-C charger?

Not always. Your laptop may require USB-C Power Delivery (PD) and a minimum wattage (such as 45W/65W/90W). Use a PD charger that meets or exceeds your laptop’s requirement.

Can this adapter be used internationally?

Many adapters support 100–240V input. Check your charger label. If it supports 100–240V, you can use it overseas with the correct plug adapter.

How can I find my laptop model on a Windows laptop?

If you are using a Windows laptop, you can find your laptop model using System Information:

• Step 1: Press Windows + R to open the Run window.
• Step 2: Type msinfo32 and click OK.
• Step 3: In the System Summary section, find System Model in the right pane.

Choosing the correct replacement adapter matters for safety and charging performance. Use this checklist before you place your order:

1. Match the Output Voltage

Check your original charger label for Output (for example, 19V).
The output voltage should match exactly.

2. Confirm Wattage / Amperage

Wattage can be the same or higher than your original adapter.
Using higher wattage is usually fine if voltage and connector match.

3. Check Connector Type & Size

For barrel tips, match the connector size (OD × ID).
For USB-C, ensure it supports USB-C PD and enough wattage for laptops.

4. Verify Polarity

Match the polarity symbol shown on your original adapter label.

💡 Battpit tip: Before using any laptop adapter, always check:
• Output voltage (must match exactly)
• Wattage (same or higher is OK)
• Connector size & polarity

All Battpit laptop adapters are designed with advanced built-in safety protection features to ensure reliable and stable charging performance. Our replacement AC adapters help protect your laptop, battery, and internal components during everyday use.

Over-voltage protection – Protects your laptop from sudden voltage spikes and unstable power supply.
Over-current protection – Prevents excessive current flow to maintain safe and consistent charging.
Short-circuit protection – Automatically shuts down the power adapter if a fault is detected.
Over-temperature protection – Helps reduce overheating risks for safer long-term use.

Each Battpit replacement laptop charger is engineered to meet high safety and quality standards, providing dependable performance for your notebook computer at home, office, or travel.
