Is this power adapter compatible with my Samsung AA-PA1N90W/US?

This adapter is designed for use with the Samsung AA-PA1N90W/US. To ensure proper compatibility, please verify that the output voltage (19V) matches exactly and that the connector type is the same as your original charger.

What is the output voltage of this charger?

The adapter delivers an output of 19V. The voltage must match your original charger precisely to ensure safe and reliable charging.

Does this adapter provide enough power for my laptop?

With a rating of 3.42A/4.74A and 65W/90W, this adapter meets or exceeds the power requirements of most compatible laptops. Using equal or higher amperage and wattage is acceptable as long as voltage and connector are correct.

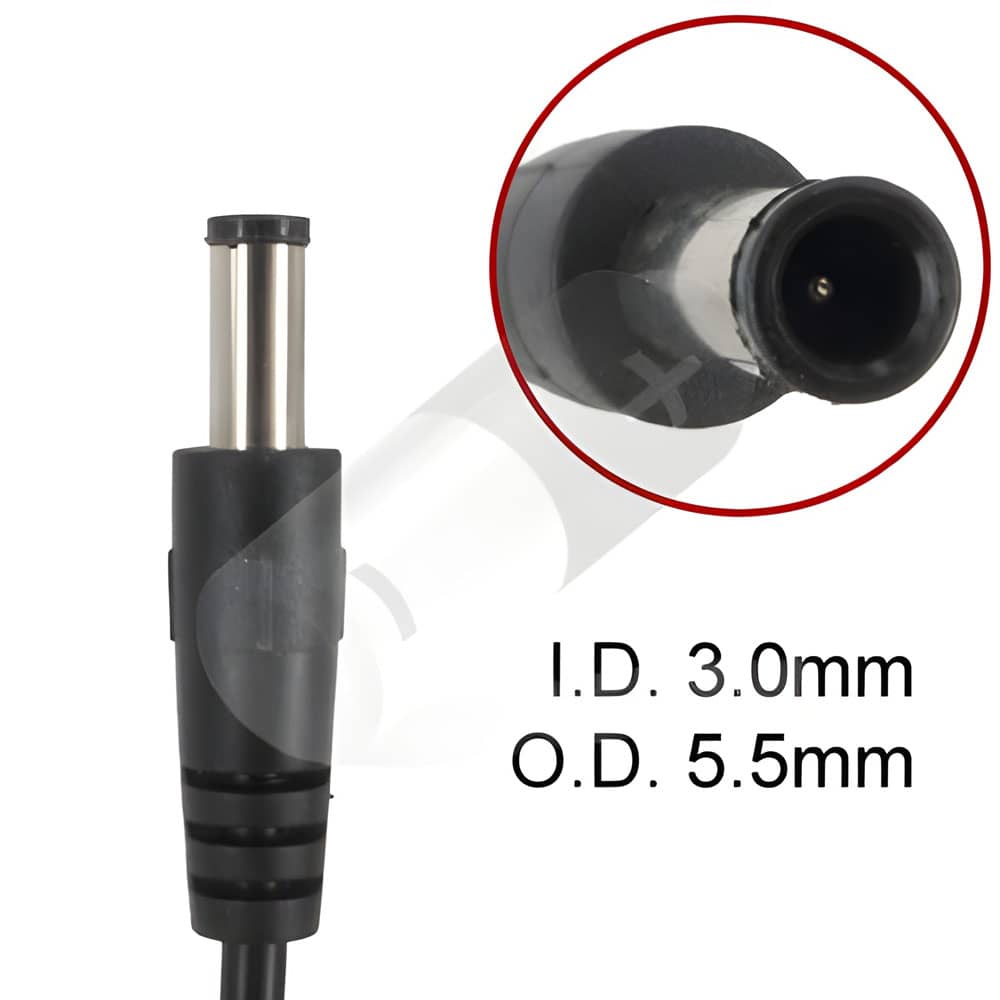

What are the barrel connector dimensions?

The barrel connector measures 5.5mm outer diameter (OD) and 3.0mm inner diameter (ID). Both dimensions must match your original adapter to ensure a secure connection.

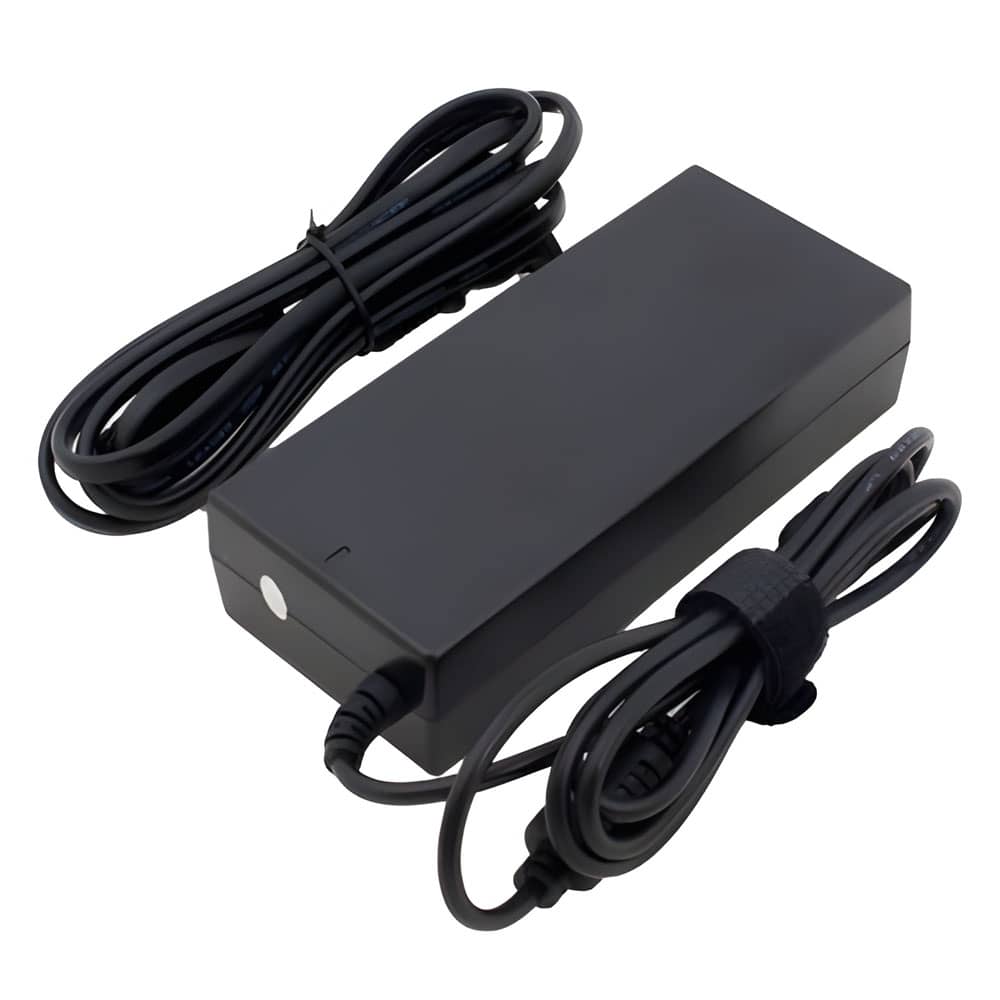

Samsung AA-PA1N90W/US Compatible Laptop Adapter 19V 3.42A/4.74A 65W/90W (Fixed I-Tip)

Q: Can this adapter be used internationally?

This adapter supports an input range of AC100~240V / 50~60Hz. It can be used in other countries as long as the local voltage falls within this range and the correct plug adapter is used.

SKU: AC19V90I-BP-K008

C$25.00

In stock

Orders placed after 3:00 PM (PT) will be processed on the next business day.

More Compatible Options

→ Shop all Samsung laptop adapters → Shop all Samsung laptop batteries

Compatible Model

Samsung X Series X20 XVM 1730Samsung X Series X20 XVM 1730 IVSamsung X Series X20 XVM 740Samsung X Series X20-1860 CebeurSamsung X Series X25 SeriesSamsung X Series X460-41SSamsung X Series X460-43PSamsung X Series X460-43PWSamsung X Series X460-44GSamsung X Series X460-AS0ASamsung X Series X50 WVM 1600Samsung X Series X50 WVM 1730Samsung X Series X50 WVM 2130Samsung X Series X60 Pro T2600 BecudoSamsung X Series X60 Pro T7200 BenitoSamsung X Series X60 T2600 BecudoSamsung X Series X60 XEP 2400Samsung X Series X60 XIH 2300Samsung X Series X60-CV01Samsung X Series X60-CV06Samsung X Series X60-CV08Samsung X Series X65 Pro Series - SamsungSamsung X Series X65 Pro T7500 BegumSamsung X Series X65 Series - SamsungSamsung VM Series VM7000Samsung VM Series VM8080CXTSamsung VM Series VM8090CTSamsung VM Series VM8110XTCSamsung V Series V25 XVC 2800Samsung R Series NP-R509-XA02ESSamsung R Series NP-RV411-A03Samsung R Series NP-RV411-A03INSamsung R Series NP-RV411-A08Samsung R Series NP-RV411-CD4BRSamsung R Series NP-RV411-CD5BRSamsung R Series NP-RV411-S03Samsung R Series NP-RV411-S07Samsung R Series NP-RV415-CD1BRSamsung R Series NP-RV415-CD2BRSamsung R Series R410-XB02Samsung R Series R420 SeriesSamsung R Series R428-DS08Samsung R Series R428-DS0LSamsung R Series R428-DS0NSamsung R Series R429-DS05Samsung R Series R429-DS06Samsung R Series R438Samsung R Series R439Samsung R Series R460Samsung R Series R460-AS03Samsung R Series R460-AS04Samsung R Series R460-BS04Samsung R Series R462Samsung R Series R465HSamsung R Series R468 SeriesSamsung R Series R470Samsung R Series R470-BS01Samsung R Series R470-BS02Samsung R Series R470-FT01Samsung R Series R470-XS02Samsung R Series R480LSamsung R Series R505-FS02Samsung R Series R505-FS04Samsung R Series R507Samsung R Series R510-FS01Samsung R Series R510-XE2V 5750Samsung R Series R519Samsung R Series R519 SeriesSamsung R Series R520Samsung R Series R520 SeriesSamsung R Series R520HSamsung R Series R523Samsung R Series R530Samsung R Series R560-AS0ASamsung R Series R560-AS0CDESamsung R Series R560-AS0HDESamsung R Series R580-JSB1USSamsung R Series R60Samsung R Series R60 Aura T2330 DeesanSamsung R Series R60 Aura T2330 DiazzSamsung R Series R60 Aura T5250 DevenSamsung R Series R60 Aura T5450 DarlisSamsung R Series R60-Aura T5250 DonnaSamsung R Series R61Samsung R Series R610 Series - SamsungSamsung R Series R610-62GSamsung R Series R610-64GSamsung R Series R610-AS06Samsung R Series R610-AS07Samsung R Series R610-Aura P9500 DeluSamsung R Series R610-Aura T5900 DelizSamsung R Series R620-63GSamsung R Series R65 Pro - SamsungSamsung R Series R65 Pro T5500 BoteezSamsung R Series R65-CV01Samsung R Series R65-CV05Samsung R Series R65-TV02Samsung R Series R70Samsung R Series R70 Aura T7300 DespinaSamsung R Series R70 Series - SamsungSamsung R Series R700 Aura T9300 DillenSamsung R Series R700-AS04DESamsung R Series R70-Aura T7250 DinessSamsung R Series R70-Aura T7300 DespinaSamsung R Series R710-AA01DESamsung R Series R710-AS03Samsung R Series R710-AS05DESamsung R Series R710-AS0DSamsung R Series R718 SeriesSamsung Q Series Q208Samsung Q Series Q210 AS01Samsung Q Series Q210-AS05Samsung Q Series Q210-Aura P8400 ToronoSamsung Q Series Q210-FA03DESamsung Q Series Q210-FS01Samsung Q Series Q210-FS02DESamsung Q Series Q210-FS04DESamsung Q Series Q210-XA08Samsung Q Series Q320 Aura P7450 BenksSamsung Q Series Q320 SeriesSamsung Q Series Q430Samsung Q Series Q460 SeriesSamsung Q Series Q460-JS01Samsung Q Series Q460-JS02Samsung Q Series Q460-JS0BSamsung Q Series Q460-JS0HSamsung Q Series Q470-JS01Samsung Q Series Q470-JS02Samsung Q Series Q470-JT02Samsung P Series P210 Pro P8400 PadouSamsung P Series P210-BA01Samsung P Series P210-BS01Samsung P Series P210-BS02Samsung P Series P210-XA01Samsung P Series P410Samsung P Series P500-FA02ITSamsung P Series P500-FA04UKSamsung P Series P500-RA01UKSamsung P Series P500-RA04UASamsung P Series P500-RA06Samsung P Series P530Samsung P Series P560-52PSamsung P Series P560-54PSamsung P Series P560-AA02Samsung NT Series NT-X330Samsung NT Series NT-X331Samsung NP Series NP200B5BSamsung NP Series NP300A5ASamsung NP Series NP300E4CSamsung NP Series NP300V5A-S0ACASamsung NP Series NP350E4CSamsung NP Series NP350U2BSamsung NP Series NP530U4CSamsung NP Series NP535U4CSamsung NP Series NP550P5CSamsung NP Series NP550P5C-S03CASamsung NP Series NP700Z4ASamsung NP Series NP700Z5AHSamsung NP Series NP770Z7ESamsung NP Series NP770Z7E-S02DESamsung NP Series NP-P430Samsung NP Series NP-P510Samsung NP Series NP-Q230Samsung NP Series NP-Q310-34GSamsung NP Series NP-Q310-34PSamsung NP Series NP-Q318Samsung NP Series NP-Q320-AS04Samsung NP Series NP-Q320ESamsung NP Series NP-Q460Samsung NP Series NP-QX410-S01PHSamsung NP Series NP-QX411HSamsung NP Series NP-R467 SeriesSamsung NP Series NP-R481Samsung NP Series NP-R503Samsung NP Series NP-R517Samsung NP Series NP-R522 SeriesSamsung NP Series NP-R560Samsung NP Series NP-R580ESamsung NP Series NP-R610Samsung NP Series NP-RC420Samsung NP Series NP-RF411Samsung NP Series NP-RV515ISamsung NP Series NP-RV520ISamsung NP Series NP-RV711Samsung NP Series NP-RV720Samsung NP Series NP-SF410Samsung NP Series NP-SF411ISamsung NP Series NP-SF510-S02DESamsung NP Series NP-SF511Samsung NP Series QX310-S03Samsung NP Series QX410-S02Samsung NP Series QX412-S01NZSamsung NP Series QX510Samsung ATIV Book 9 Series Ativ Book 9 Pro NP940Z5JSamsung ATIV Book 8 Series NP780Z5ESamsung ATIV Book 8 Series NP880Z5E-X01AUSamsung ATIV Book 8 Series NP880Z5E-X01DESamsung ATIV Book 8 Series NP880Z5E-X01ITSamsung ATIV Book 8 Series NP880Z5E-X01NLSamsung ATIV Book 8 Series NP880Z5E-X02CA

Original Part Number

SPA-P30SPA-P30E AA-PA1N90W/UK SAM-SPAX10 SPA-T10/UK 0455A1990 BA44-00130AP PCGAD-6019 NBP001324-00 NBP001326-00 AD9019S SPA-T10E/EUR SPA-V20 AD9019M SPA-X10/E SPA-T10/EUR SPA-P30 AD-6019A SPA-X10/UK SPA-A10E/E BA44-00147A AD-9019A AA-PA1N90W/E API1AD02 SAM-SPA-X10 NBP001275-00 AA-PA0N90W SPA-X10 SADP-90FH B AD-9019E AD-9019 AD8019 SPA-P30E SPA-A10E/UK BA44-00242A SPA-830E/EUR NBP001517-00 NBP001326-02 AD-9019S ADP-60ZH A ADP-60ZH D 504030-016 AA-PA0N90W/E SPA-690E/E AA-PA1N90W DSO014900-00 SPA-V20E/UK 152884 NBP001587-00 AD-6019(V) SAM-AA-PA0N90W AA-PA3NS90 AA-PA3NS90/US AD-4019 NBP001516-00 NBP001444-00 AA-PA1N90W/US A10-090P4A BA44-00244A AD-6019V NBP001326-01 NPP001281-00 NBP001284-00 AD-9019SL AD-6019 SPA-690E/UK BA44-00215A NBP001518-00 AP11AD002 API3AD05 SPA-V20E AD-9019N SADP-90FH D BA44-00243A AD9019 AP04214-UV NBP001445-00 SPAP30E/E AD-9019M 504030-015 AA-PA0N90W/UK PA1900-08S SPA-P30E/UK SPA-P30E/E AD-6519 BA44-00233A PA-1900-08S SPA-V20E/E AD9019N AD-8019 SPA-830E/UK

Adapter Q&A How to Choose the Right Adapter Protection Features

How can I confirm a replacement laptop adapter will work with my laptop?

Match the output voltage exactly, then confirm the connector type/size and polarity. Wattage can be the same or higher than your original adapter.

Where do I find the voltage and wattage information?

Check the label on your original charger (or the laptop’s bottom label). Look for Output (V) and Wattage (W). The voltage must match exactly.

Can I use an adapter with a different voltage?

In most cases, no. Using the wrong voltage can cause charging issues or damage your laptop.

Can I use a higher wattage adapter (for example 90W instead of 65W)?

Yes—higher wattage is usually OK as long as the voltage matches and the connector fits. Your laptop will only draw the power it needs.

How do I confirm the connector size is correct?

Compare the tip with your original charger and check the listed connector size (OD × ID). Even small differences (like 5.5×2.1mm vs 5.5×2.5mm) may not fit properly.

What does polarity mean, and why does it matter?

Polarity indicates which part of the plug is positive/negative. It must match your original adapter for safe and reliable charging.

My laptop uses USB-C charging. Can I use any USB-C charger?

Not always. Your laptop may require USB-C Power Delivery (PD) and a minimum wattage (such as 45W/65W/90W). Use a PD charger that meets or exceeds your laptop’s requirement.

Can this adapter be used internationally?

Many adapters support 100–240V input. Check your charger label. If it supports 100–240V, you can use it overseas with the correct plug adapter.

How can I find my laptop model on a Windows laptop?

If you are using a Windows laptop, you can find your laptop model using System Information:

• Step 1: Press Windows + R to open the Run window.
• Step 2: Type msinfo32 and click OK.
• Step 3: In the System Summary section, find System Model in the right pane.

Choosing the correct replacement adapter matters for safety and charging performance. Use this checklist before you place your order:

1. Match the Output Voltage

Check your original charger label for Output (for example, 19V).
The output voltage should match exactly.

2. Confirm Wattage / Amperage

Wattage can be the same or higher than your original adapter.
Using higher wattage is usually fine if voltage and connector match.

3. Check Connector Type & Size

For barrel tips, match the connector size (OD × ID).
For USB-C, ensure it supports USB-C PD and enough wattage for laptops.

4. Verify Polarity

Match the polarity symbol shown on your original adapter label.

💡 Battpit tip: Before using any laptop adapter, always check:
• Output voltage (must match exactly)
• Wattage (same or higher is OK)
• Connector size & polarity

All Battpit laptop adapters are designed with advanced built-in safety protection features to ensure reliable and stable charging performance. Our replacement AC adapters help protect your laptop, battery, and internal components during everyday use.

Over-voltage protection – Protects your laptop from sudden voltage spikes and unstable power supply.
Over-current protection – Prevents excessive current flow to maintain safe and consistent charging.
Short-circuit protection – Automatically shuts down the power adapter if a fault is detected.
Over-temperature protection – Helps reduce overheating risks for safer long-term use.

Each Battpit replacement laptop charger is engineered to meet high safety and quality standards, providing dependable performance for your notebook computer at home, office, or travel.

Safety & Compliance

Certified Quality You Can Trust

Battpit Canada replacement laptop batteries and AC adapters are selected with safety, compatibility, and compliance in mind. Products may meet common industry standards including RoHS, CE, UL, and ULC where applicable.

RoHS

RoHS Compliant Helps reduce restricted hazardous substances in electronic products.

CE

CE Marked Designed to meet applicable safety and quality requirements.

UL

UL Recognized Components Selected products may use UL recognized cells, components, or protection circuits.

ULC

ULC Safety Standard Supports safety confidence for products supplied to Canadian customers.

Why this matters: These compliance marks help customers choose a reliable replacement laptop battery, laptop charger, or AC adapter with built-in safety features such as over-charge, over-current, over-voltage, and short-circuit protection.
