Is this power adapter compatible with my Samsung PCGAD-6019?

This adapter is designed for use with the Samsung PCGAD-6019. To ensure proper compatibility, please verify that the output voltage (19V) matches exactly and that the connector type is the same as your original charger.

What is the output voltage of this charger?

The adapter delivers an output of 19V. The voltage must match your original charger precisely to ensure safe and reliable charging.

Does this adapter provide enough power for my laptop?

With a rating of 3.42A/4.74A and 65W/90W, this adapter meets or exceeds the power requirements of most compatible laptops. Using equal or higher amperage and wattage is acceptable as long as voltage and connector are correct.

What are the barrel connector dimensions?

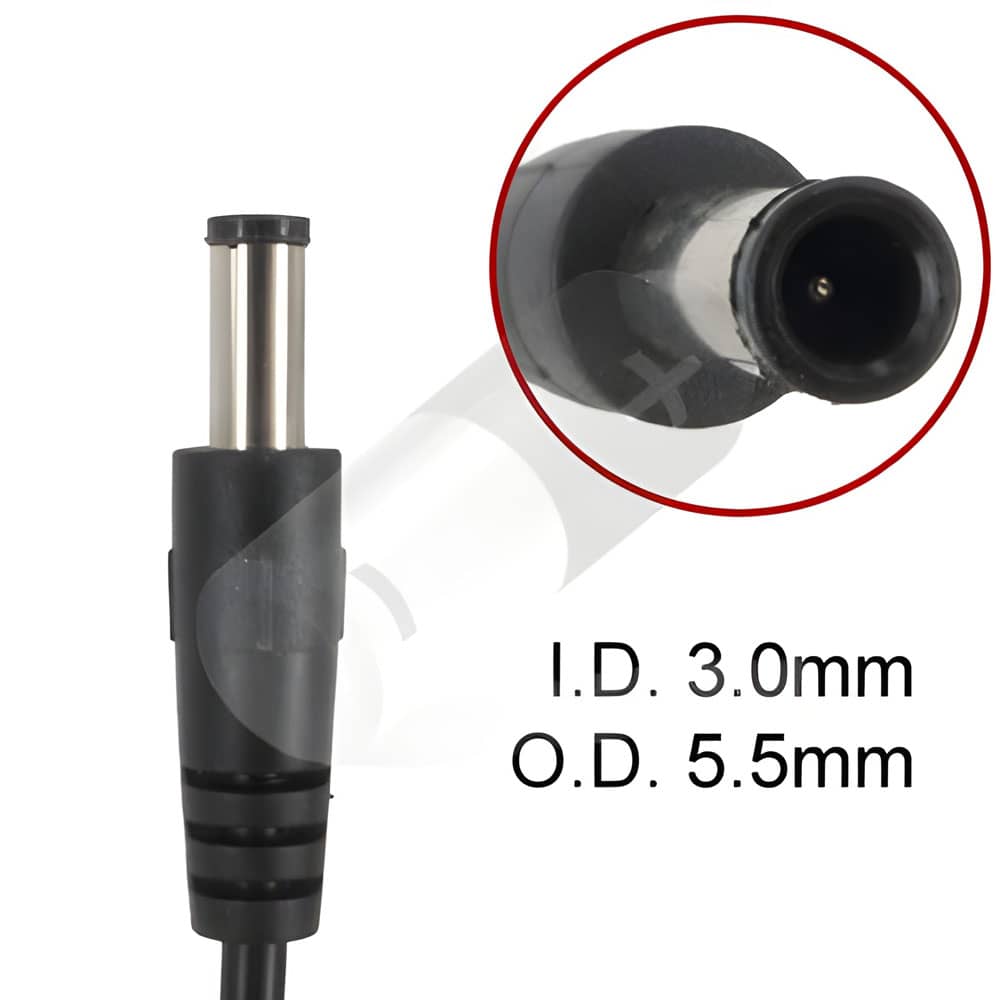

The barrel connector measures 5.5mm outer diameter (OD) and 3.0mm inner diameter (ID). Both dimensions must match your original adapter to ensure a secure connection.

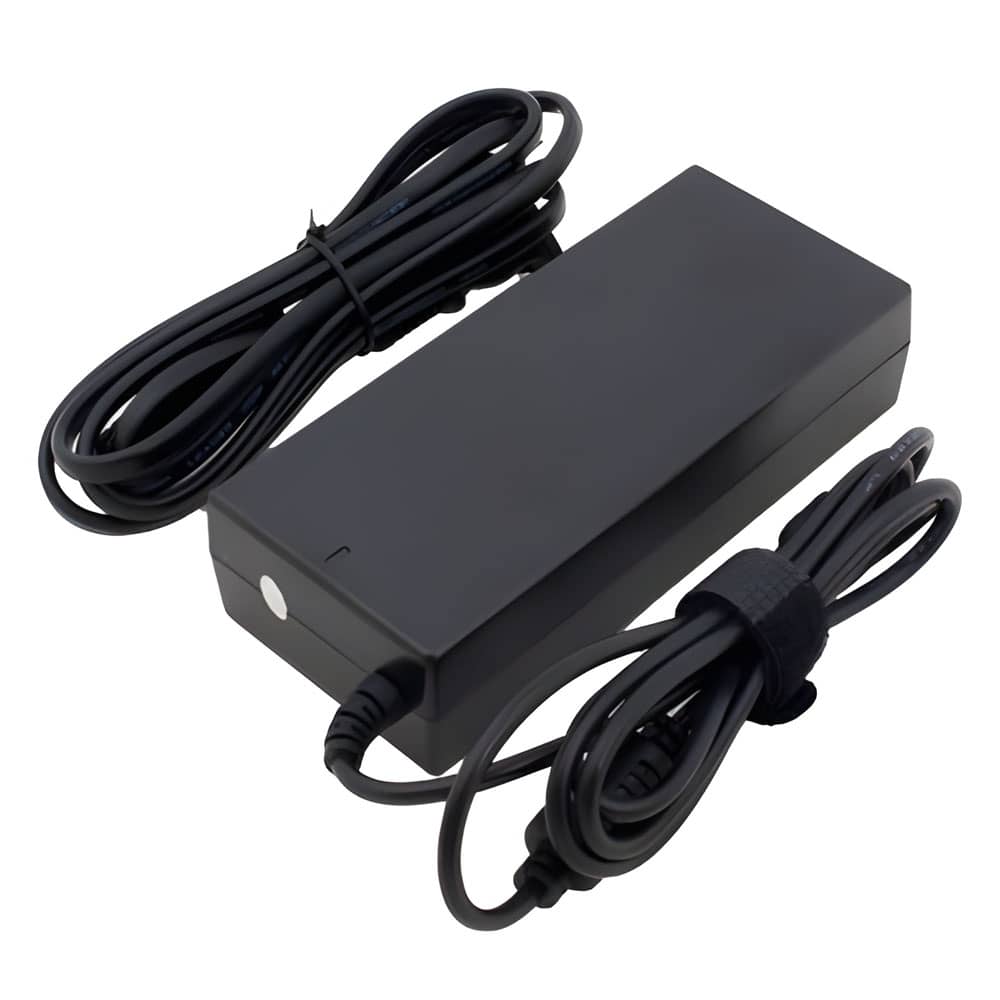

Samsung PCGAD-6019 Compatible Laptop Adapter 19V 3.42A/4.74A 65W/90W (Fixed I-Tip)

Q: Can this adapter be used internationally?

This adapter supports an input range of AC100~240V / 50~60Hz. It can be used in other countries as long as the local voltage falls within this range and the correct plug adapter is used.

SKU: AC19V90I-BP-K025

C$25.00

In stock

Orders placed after 3:00 PM (PT) will be processed on the next business day.

More Compatible Options

→ Shop all Samsung laptop adapters → Shop all Samsung laptop batteries

Compatible Model

Samsung X Series X20 HVM 740Samsung X Series X20 XVM 1730 IISamsung X Series X22-A006Samsung X Series X360-AA03Samsung X Series X360-AA04Samsung X Series X460 Series - SamsungSamsung X Series X460-41SSamsung X Series X460-43PWSamsung X Series X460-AS03Samsung X Series X50 WVM 2000Samsung X Series X60 Plus - SamsungSamsung X Series X60 Plus TZ01Samsung X Series X60 XEP 2400Samsung X Series X60-CV03Samsung X Series X60-CV08Samsung X Series X65 Pro Series - SamsungSamsung X Series X65 XEV 7300Samsung VM Series VM6300Samsung VM Series VM7700Samsung VM Series VM8080Samsung VM Series VM8100 - SamsungSamsung V Series V20 XTC 2000Samsung V Series V20 XVC 2000Samsung V Series V25 XVC 2600cSamsung V Series V25 XVC 2800Samsung R Series NP-RV410-CD1BRSamsung R Series NP-RV411-A01Samsung R Series NP-RV411-A01MYSamsung R Series NP-RV411-CD1BRSamsung R Series NP-RV411-S02AESamsung R Series NP-RV411-S03Samsung R Series NP-RV419-CD1BRSamsung R Series NP-RV420-CD2BRSamsung R Series R410-XA06Samsung R Series R410-XB09Samsung R Series R428-DA04Samsung R Series R428-DS01Samsung R Series R428-DS0BSamsung R Series R429-DS07Samsung R Series R429-DS0ASamsung R Series R438Samsung R Series R440Samsung R Series R460-AS06Samsung R Series R460-AS09Samsung R Series R460-XS04Samsung R Series R463Samsung R Series R463HSamsung R Series R465HSamsung R Series R466 SeriesSamsung R Series R470-AS07Samsung R Series R470-AT02Samsung R Series R470-BS01Samsung R Series R470-XS04Samsung R Series R509Samsung R Series R510-AS04Samsung R Series R510-AS08Samsung R Series R510-FA07Samsung R Series R510-FA09Samsung R Series R510-FS09Samsung R Series R510-FS0BDESamsung R Series R510-XE2V 7350Samsung R Series R510-XE5V 7350Samsung R Series R530Samsung R Series R540Samsung R Series R55-CV02Samsung R Series R560-AS0FDESamsung R Series R560-AS0GDESamsung R Series R580-JSB1USSamsung R Series R581Samsung R Series R60 Aura T2130 DaliwaSamsung R Series R60 Aura T2330 DeesanSamsung R Series R60 Aura T2330 DiazzSamsung R Series R60 Aura T5250 DonnaSamsung R Series R60 SeriesSamsung R Series R60-Aura T2330 DiazzSamsung R Series R60-Aura T5250 DeeloySamsung R Series R60-plusSamsung R Series R610 Series - SamsungSamsung R Series R610-62GSamsung R Series R610-AS05Samsung R Series R610-AS07Samsung R Series R620 SeriesSamsung R Series R65 WIP 5500Samsung R Series R65-T2300 CarrewSamsung R Series R70 Aura T5250 DaryusSamsung R Series R70 Aura T5250 DosanSamsung R Series R70 Aura T7500 DamayaSamsung R Series R70 Aura T7500 DenetSamsung R Series R70 Series - SamsungSamsung R Series R700 Series SamsungSamsung R Series R700-AS05DESamsung R Series R70-A007Samsung R Series R70-Aura T5250 DorosoSamsung R Series R70-Aura T7100 DevinSamsung R Series R70-Aura T7250 DinessSamsung R Series R710-AS0ASamsung R Series R717Samsung R Series R718Samsung R Series R720 SeriesSamsung R Series RV411-CD5BRSamsung Q Series Q210 AS05Samsung Q Series Q210-AA03Samsung Q Series Q210-Aura P8400 ToronoSamsung Q Series Q210-FA03DESamsung Q Series Q310-AS0ASamsung Q Series Q318-DS0GSamsung Q Series Q318-DS0HSamsung Q Series Q318-DS0JSamsung Q Series Q318-DS0KpSamsung Q Series Q320 Aura P7450 BenksSamsung Q Series Q320 SeriesSamsung Q Series Q320-32PSamsung Q Series Q428Samsung Q Series Q430Samsung Q Series Q460-JS01Samsung Q Series Q470-JT02Samsung Q Series Q528Samsung P Series P210Samsung P Series P210-XA01Samsung P Series P410Samsung P Series P500-FA03UKSamsung P Series P500-FA04Samsung P Series P500-FA05Samsung P Series P500-FA07UKSamsung P Series P500-RA04UASamsung P Series P530Samsung P Series P560-AA04Samsung NT Series NT-Q322Samsung NT Series NT-R423Samsung NT Series NT-R428Samsung NT Series NT-R431Samsung NT Series NT-R439Samsung NT Series NT-RF411Samsung NT Series NT-SF310Samsung NT Series NT-SF410Samsung NT Series NT-X331Samsung NP Series NP200B5AISamsung NP Series NP270E5GSamsung NP Series NP300A5ASamsung NP Series NP350E7CSamsung NP Series NP350V5CSamsung NP Series NP355E4CSamsung NP Series NP355E5CSamsung NP Series NP355E7CSamsung NP Series NP355V4C-S01CASamsung NP Series NP355V4C-S02CASamsung NP Series NP355V5C-A03CASamsung NP Series NP470R5ESamsung NP Series NP500P4C-S01USSamsung NP Series NP520U4CSamsung NP Series NP550P7CSamsung NP Series NP550P7C-T04CASamsung NP Series NP600B4CSamsung NP Series NP600B5BHSamsung NP Series NP700Z3ASamsung NP Series NP700Z3C-S02USSamsung NP Series NP700Z4ASamsung NP Series NP700Z5CHSamsung NP Series NP700Z5C-S01CASamsung NP Series NP700Z5C-S02UBSamsung NP Series NP-E3420Samsung NP Series NP-P330Samsung NP Series NP-Q320 SeriesSamsung NP Series NP-Q320-AS02Samsung NP Series NP-Q320-FS01USSamsung NP Series NP-QX411-W01USSamsung NP Series NP-R418 SeriesSamsung NP Series NP-R465 SeriesSamsung NP Series NP-R468 SeriesSamsung NP Series NP-R469 SeriesSamsung NP Series NP-R478 SeriesSamsung NP Series NP-R507 SeriesSamsung NP Series NP-R518Samsung NP Series NP-R522 SeriesSamsung NP Series NP-R525Samsung NP Series NP-R780ESamsung NP Series NP-R780VESamsung NP Series NP-RC410Samsung NP Series NP-RC425Samsung NP Series NP-RF510ESamsung NP Series NP-RF710Samsung NP Series NP-RV515Samsung NP Series NP-RV520ISamsung NP Series NP-RV711Samsung NP Series NP-RV711ISamsung NP Series NP-RV720ISamsung NP Series NP-SF310Samsung NP Series NP-SF311Samsung NP Series NP-SF410Samsung NP Series NP-SF411ISamsung NP Series NP-X330Samsung NP Series NP-X460ISamsung NP Series QX310-S02DESamsung NP Series QX310-S03Samsung NP Series QX310-S04Samsung NP Series QX310-S05Samsung NP Series QX412-S01AUSamsung NP Series QX412-S04DESamsung ATIV Book 8 Series NP770Z5E-S01CLSamsung ATIV Book 8 Series NP880Z5E-X01

Original Part Number

NBP001326-00 SPA-690E/E BA44-00215A BA44-00147A ADP-60ZH A PCGAD-6019 504030-016 AD-9019N AA-PA0N90W/E SPA-830E/EUR AD8019 SPA-830E/UK DSO014900-00 AD-6019A 152884 AA-PA3NS90 API1AD02 SPA-A10E/E AD-8019 AP04214-UV SAM-SPA-X10 AD-6519 SPAP30E/E NBP001444-00 SPA-690E/UK NBP001326-02 SPA-P30E/E AA-PA1N90W/UK AD-9019M NBP001517-00 AA-PA1N90W/E SADP-90FH B AA-PA0N90W 504030-015 SPA-V20 SPA-V20E/E NBP001324-00 AD-9019A BA44-00242A AD-9019 BA44-00130AP A10-090P4A NBP001275-00 AD9019N AA-PA1N90W/US NBP001445-00 NBP001284-00 PA1900-08S AD-6019V AD-6019 0455A1990 SADP-90FH D SPA-P30 AD-4019 AP11AD002 BA44-00233A PA-1900-08S NBP001516-00 AA-PA0N90W/UK AD-9019S SPA-T10E/EUR SPA-P30E ADP-60ZH D SPA-X10/UK AD-9019E SAM-AA-PA0N90W SPA-A10E/UK SPA-V20E/UK AA-PA1N90W SAM-SPAX10 SPA-X10/E NBP001326-01 NPP001281-00 SPA-V20E AD-6019(V) SPA-T10/EUR SPA-P30SPA-P30E SPA-T10/UK SPA-X10 BA44-00243A SPA-P30E/UK BA44-00244A AD9019S API3AD05 AD9019M AA-PA3NS90/US NBP001587-00 AD-9019SL NBP001518-00 AD9019

Adapter Q&A How to Choose the Right Adapter Protection Features

How can I confirm a replacement laptop adapter will work with my laptop?

Match the output voltage exactly, then confirm the connector type/size and polarity. Wattage can be the same or higher than your original adapter.

Where do I find the voltage and wattage information?

Check the label on your original charger (or the laptop’s bottom label). Look for Output (V) and Wattage (W). The voltage must match exactly.

Can I use an adapter with a different voltage?

In most cases, no. Using the wrong voltage can cause charging issues or damage your laptop.

Can I use a higher wattage adapter (for example 90W instead of 65W)?

Yes—higher wattage is usually OK as long as the voltage matches and the connector fits. Your laptop will only draw the power it needs.

How do I confirm the connector size is correct?

Compare the tip with your original charger and check the listed connector size (OD × ID). Even small differences (like 5.5×2.1mm vs 5.5×2.5mm) may not fit properly.

What does polarity mean, and why does it matter?

Polarity indicates which part of the plug is positive/negative. It must match your original adapter for safe and reliable charging.

My laptop uses USB-C charging. Can I use any USB-C charger?

Not always. Your laptop may require USB-C Power Delivery (PD) and a minimum wattage (such as 45W/65W/90W). Use a PD charger that meets or exceeds your laptop’s requirement.

Can this adapter be used internationally?

Many adapters support 100–240V input. Check your charger label. If it supports 100–240V, you can use it overseas with the correct plug adapter.

How can I find my laptop model on a Windows laptop?

If you are using a Windows laptop, you can find your laptop model using System Information:

• Step 1: Press Windows + R to open the Run window.
• Step 2: Type msinfo32 and click OK.
• Step 3: In the System Summary section, find System Model in the right pane.

Choosing the correct replacement adapter matters for safety and charging performance. Use this checklist before you place your order:

1. Match the Output Voltage

Check your original charger label for Output (for example, 19V).
The output voltage should match exactly.

2. Confirm Wattage / Amperage

Wattage can be the same or higher than your original adapter.
Using higher wattage is usually fine if voltage and connector match.

3. Check Connector Type & Size

For barrel tips, match the connector size (OD × ID).
For USB-C, ensure it supports USB-C PD and enough wattage for laptops.

4. Verify Polarity

Match the polarity symbol shown on your original adapter label.

💡 Battpit tip: Before using any laptop adapter, always check:
• Output voltage (must match exactly)
• Wattage (same or higher is OK)
• Connector size & polarity

All Battpit laptop adapters are designed with advanced built-in safety protection features to ensure reliable and stable charging performance. Our replacement AC adapters help protect your laptop, battery, and internal components during everyday use.

Over-voltage protection – Protects your laptop from sudden voltage spikes and unstable power supply.
Over-current protection – Prevents excessive current flow to maintain safe and consistent charging.
Short-circuit protection – Automatically shuts down the power adapter if a fault is detected.
Over-temperature protection – Helps reduce overheating risks for safer long-term use.

Each Battpit replacement laptop charger is engineered to meet high safety and quality standards, providing dependable performance for your notebook computer at home, office, or travel.

Safety & Compliance

Certified Quality You Can Trust

Battpit Canada replacement laptop batteries and AC adapters are selected with safety, compatibility, and compliance in mind. Products may meet common industry standards including RoHS, CE, UL, and ULC where applicable.

RoHS

RoHS Compliant Helps reduce restricted hazardous substances in electronic products.

CE

CE Marked Designed to meet applicable safety and quality requirements.

UL

UL Recognized Components Selected products may use UL recognized cells, components, or protection circuits.

ULC

ULC Safety Standard Supports safety confidence for products supplied to Canadian customers.

Why this matters: These compliance marks help customers choose a reliable replacement laptop battery, laptop charger, or AC adapter with built-in safety features such as over-charge, over-current, over-voltage, and short-circuit protection.
